1.5*15m Sand Rotary Dryer for Drying Materials

FOB Reference Price:Get Latest Price
US $2,000-200,000 / Set | 1 Set/Sets the price is negotiable (Min. Order)
Supply Ability:
20 Set/Sets per Month Export ports can be specified by the customer
Port:
tianjin,shanghai
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Drum Drying Equipment
Place of Origin:
Henan, China (Mainland)
Brand Name:
hongfeng
Model Number:
1.5*12
Voltage:
220v/380v
Power(W):
15kw
Dimension(L*W*H):
12000*1500*1800
Weight:
21.2
Certification:
ISO9001:2000
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Heating source:
hot blast heater
Capacity:
21.2
Installation:
Engineer Guide
Color:
Customers Requirements
Usage:
Dry Heat Sterilization
Material:
Stainless Steel
Application:
Powder
MOQ:
1 Set
Name:
rotary dryer
Keyword:
Three cyclinder rotary dryer
Packaging & Delivery
Packaging Details
wooden container oe nude packing or other as per the client's request
Delivery Time
Shipped in 30 days after payment
Product Description

Product Application

Three cyclinder rotary dryer application:
Rotary dryer is widely used for drying materials in the industries of cemet, mine, contruction, chemical, food, compoud fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C)

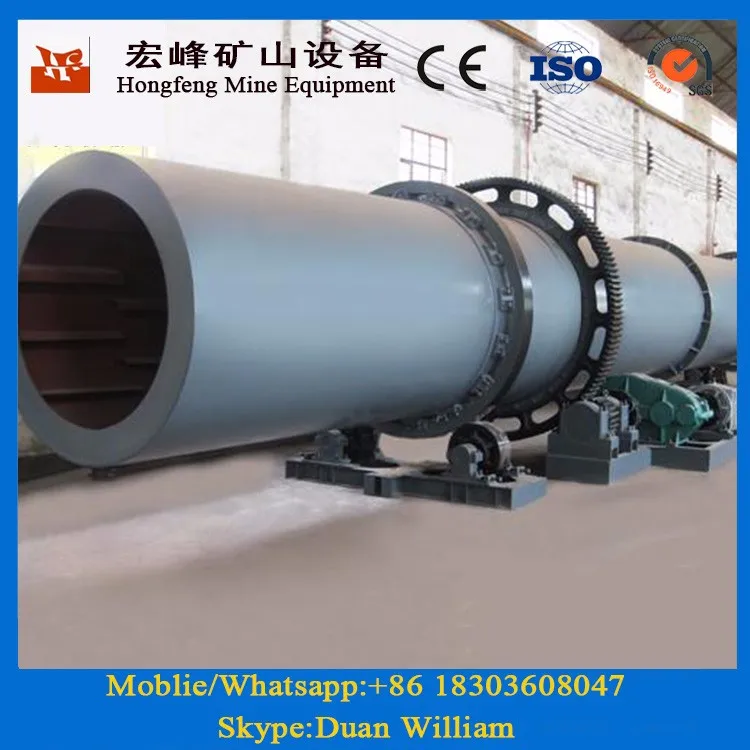

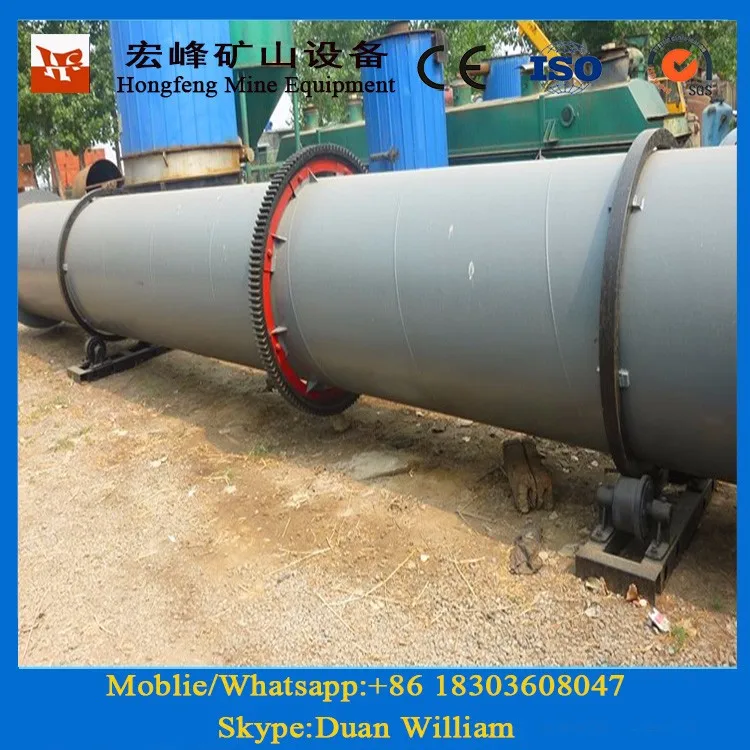

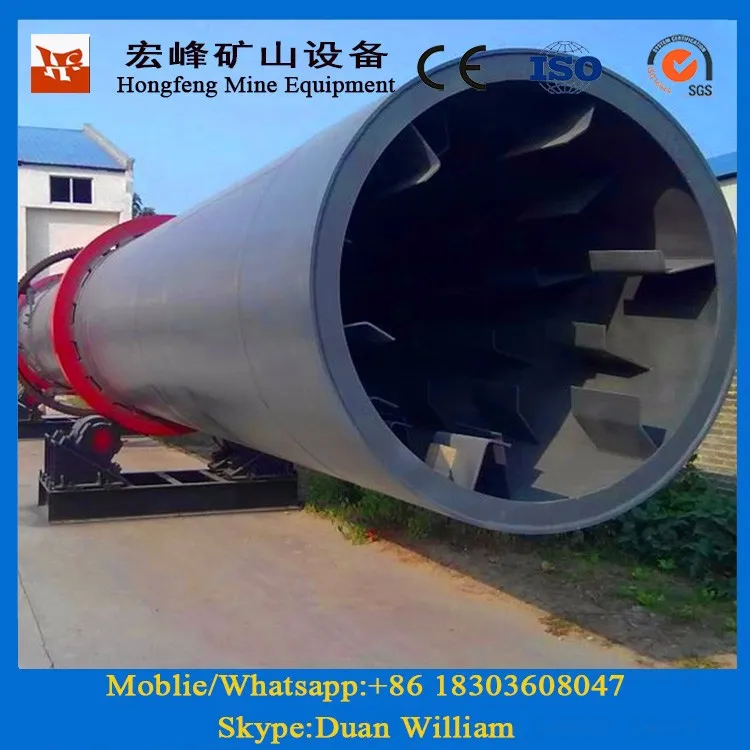

Three cyclinder rotary dryer Structure:
Rotary dryer machine is mainly composed of shell, back and forth supporting wheel, feeding and discharging unit and gear cap. The accessories which are not in the the scope of this machine include firebox, feeding and discharging equipment, dust catcher, etc.

Three cyclinder rotary dryer working principle:
Rotary dryer adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the dryer is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.

Model
(D*L)
Capacity
(T/H)
Power
(KW)
revolving speed
(R/MIN)
Installation Angle
(O)
Cubage
(M3)
Reduction box

Weight
(T)
Φ0.6×8 m
1.5-2.8
4
8
3-5
2.26
JZQ 350-16-I
5.1
Φ0.8×10 m
3.0
4
7.5
3-5
5.02
JZQ 350-16-I
6.9
Φ10×10 m
3.3-4.9
5.5
5.8
3-5
7.85
JZQ 400-16-I
7.5
Φ1.2×10 m
4-6
7.5
4.8
3-5
13.31
ZL 50-16-I
13.5
Φ1.5×12 m
4-6
10
4.8
3-5
21.2
JZQ 500-III-2F
18.9
Φ1.5×15 m
7-12
18.5
4.8
3-5
28.5
ZQ 500III-2F
21
Φ1.8×12 m
7-12
18.5
4.1
3-5
48.22
JZQ 50-16II-2
22.83
Φ2.2×12 m
12
18.5
3.2
3-5
51.2
JZQ 650-III
37.6
Φ2.2×14 m
12
22
3.2
3-5
53.5
JZQ 650-III
40
Φ2.2×16 m
10-13
30
3.2
3-5
70.43
JZQ 750-III
45
Φ2.4×14 m
10-14
30
3
3-5
85.5
JZQ 750-III
51
Φ2.4×18 m
25
37
3
3-5
88.5
ZL 85-13-I
54
Φ2.4×20 m
32-36
37
3
3-5
90.43
ZL 85-13-I
54.14
Φ3.0×20 m
40-50
55
2.59
3-5
141.3
ZL 110-16-I
78
Φ3.0×25 m
45-58
75
2.59
3-5
176.7
ZL 110-16-I
104.9
Φ3.2×25m
50-60
90
2.48
3-5
200.9
ZL 110-16-I
110
Φ3.6×28m
60-76
160
2.33
3-5
284.8
ZL 110-16-I
135

Main Features

With new technologies applying, our chicken manure dryer / cow manure dryer / rotary dryer has achieved the goal of Serialization, industrialization and automation. Water in materials can be reduced from 80% to 30% after drying. The advantages of the dryer are as follows:

1. Adjust the amount of materials according to the need.

2. Low consumption and energy saving; the water in finished products are under 30%.

3. Efficiently drying with new technologies' applying.

4. Lower risk of malfunction and easy to maintain and operate.

5. Dependable structure and good Manufacturing to guarantee it fine with long-time operation.

6. Customized for every application and best price on the market.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

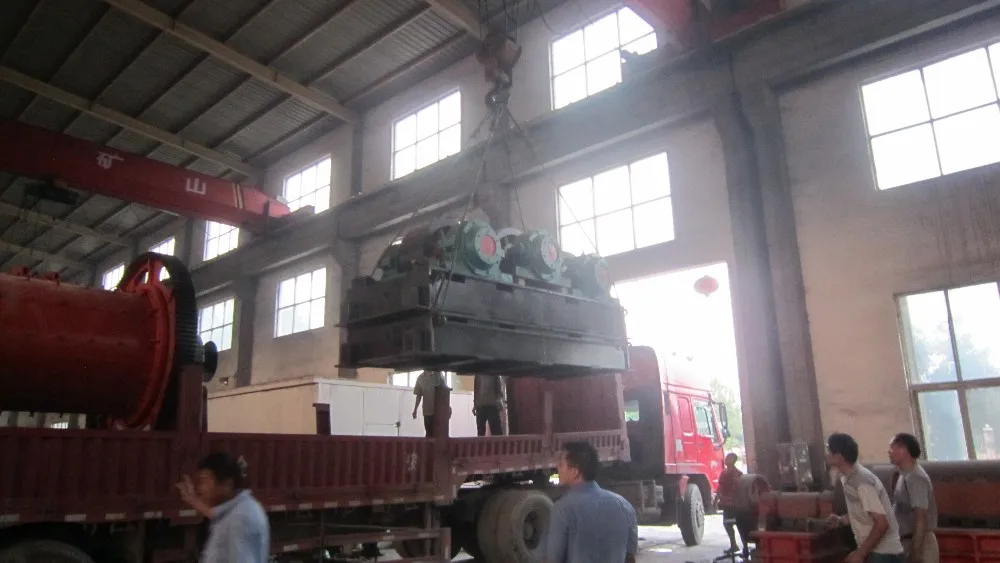

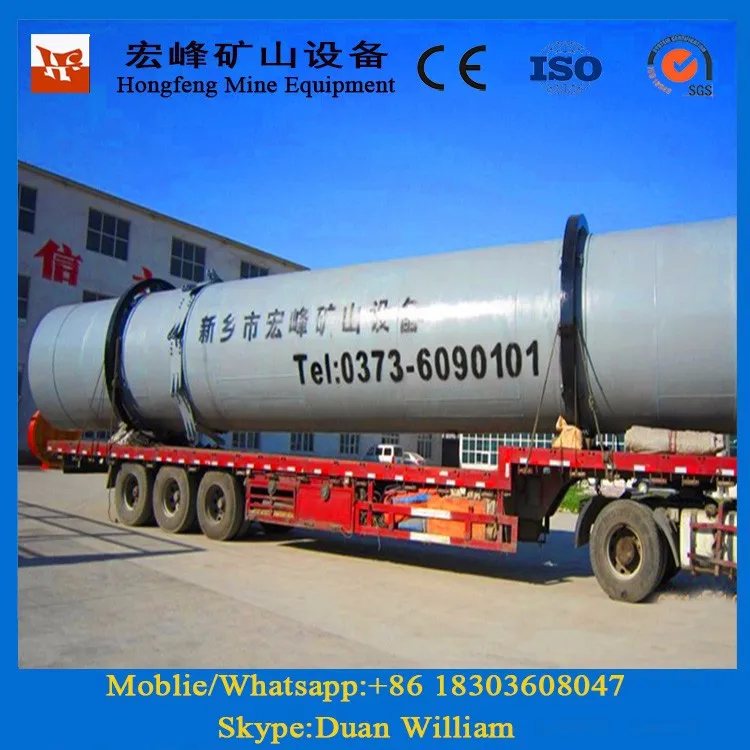

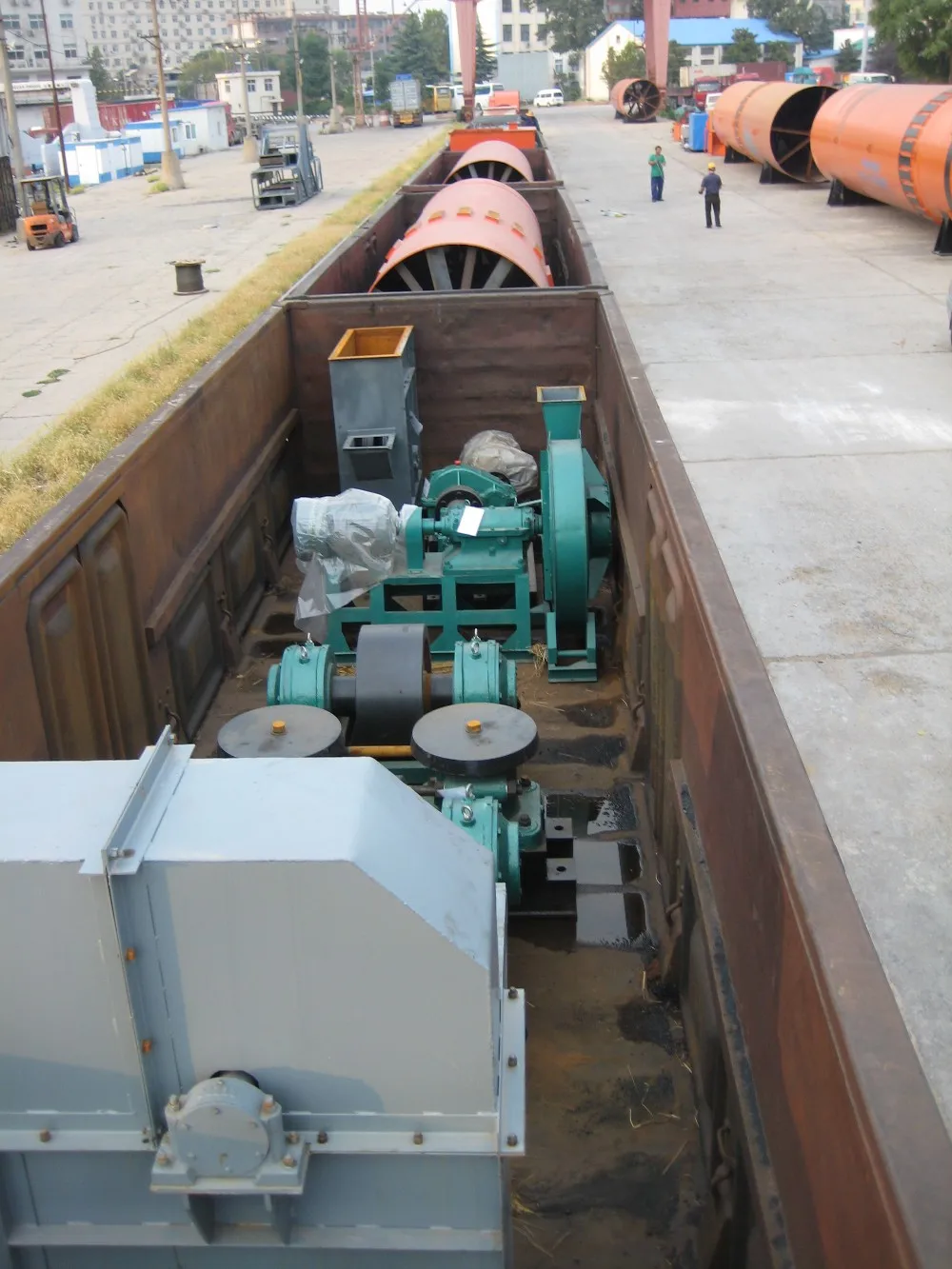

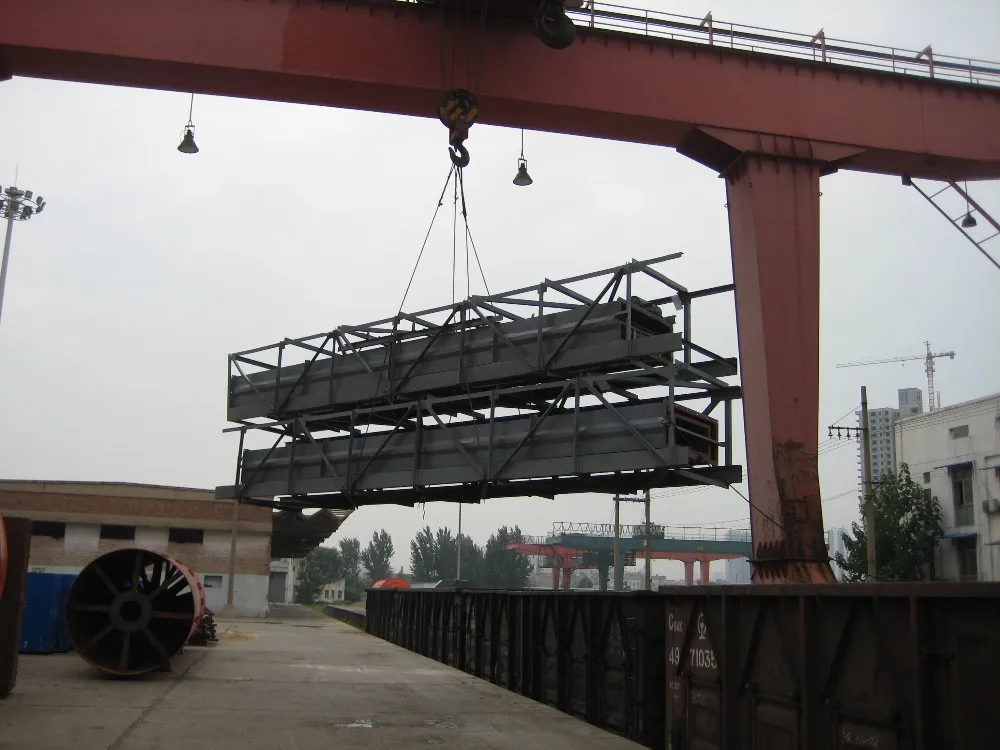

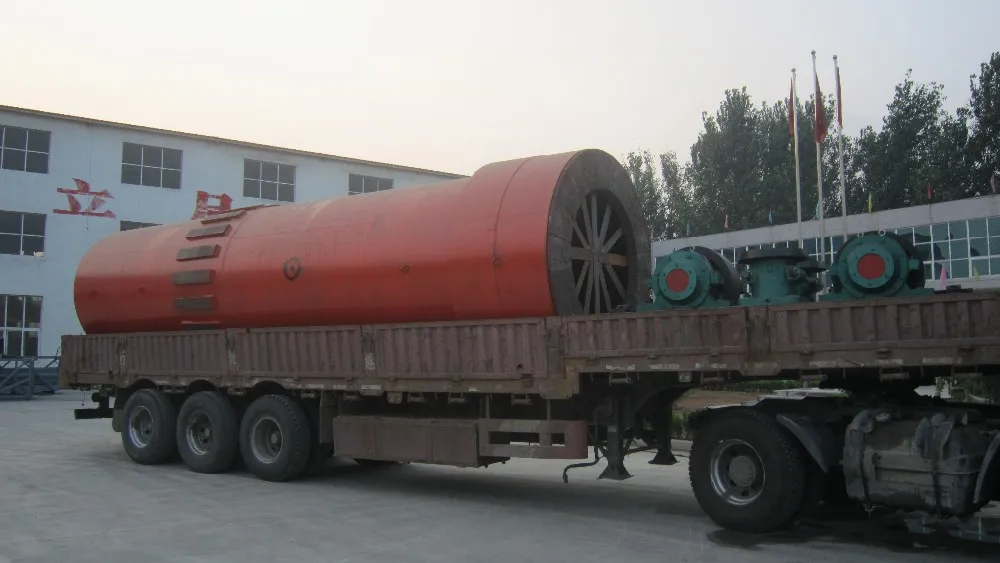

Packing & Delivery

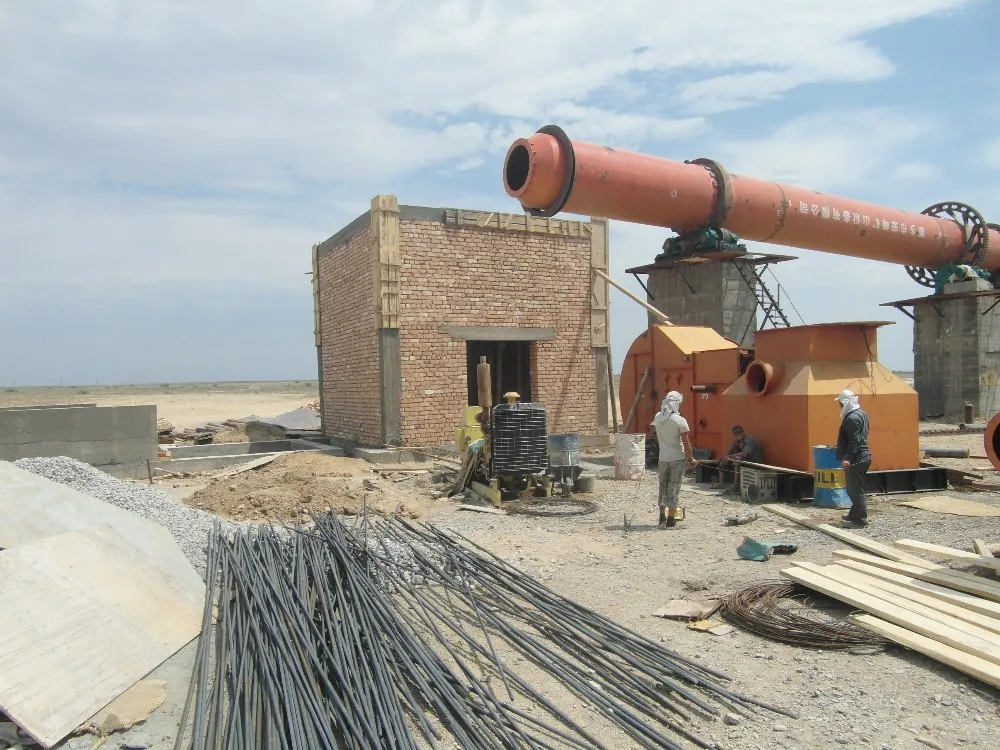

Clients Photos

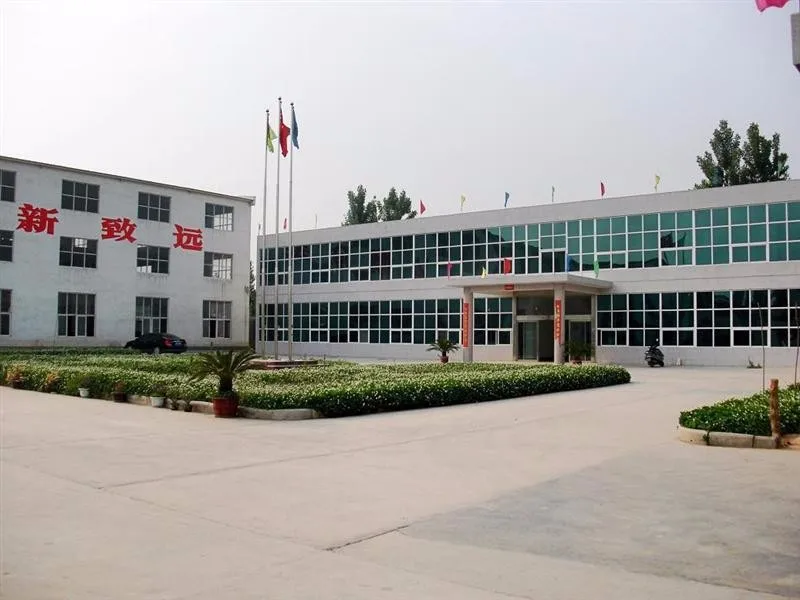

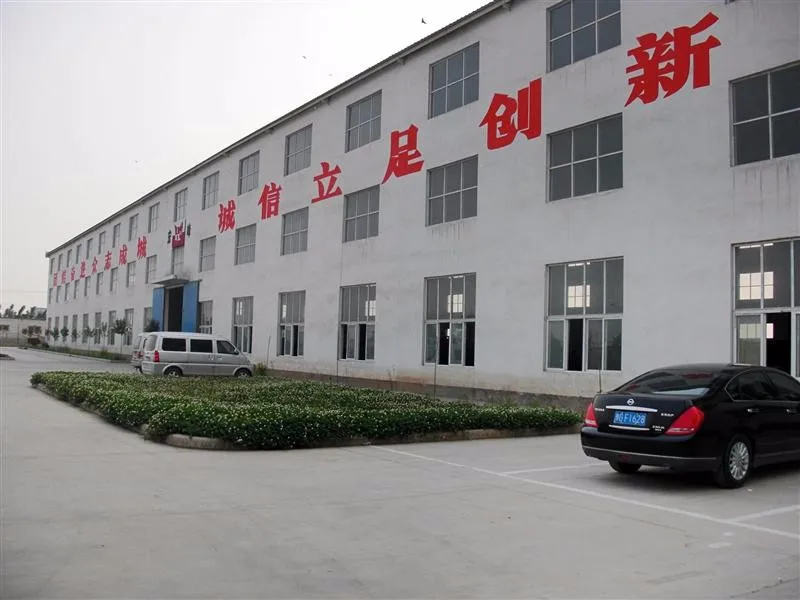

Our Company
